Enabling low code developers to

Create custom client reports with a helping hand from Azure

Introduction

Ian Tweedie

• Senior Technical Consultant, Capgemini
• Trustee for Digital Transformation for a £22 million non for profit
• Chair of an £750k non for profit

Ian Tweedie

Certification Wall

Community Tools

• Calculate working day
• Email domain checker
• SharePoint Connector using SPN
• Email Connector using SPN
• Dataverse 4 Teams Local ALM Tool
• DevOps Extension: Power Apps Solution Documentation Tool
• Around 500k hits a month

Power Platform Clinic

Problem

• WE ARE handling high value claims

• WE NEED TO share settlement documents with our clients

• WE MUST share these documents securely

Problems

Proposed solution

• Present it as a web link

Can we

• Get power automate to make a web page for us

• Can that web page present a PDF document

Key component

Web Page

• Flow with HTTP Request trigger
• Response Headers

content-type : text/html

content-type : text/html

• Full list can be found Common MIME types - HTTP | MDN (mozilla.org)

Lets give it a go

Live Demo 3

1. PDF Flow
2. Try it out

View the flow run

View

Key component

PDF

Response Headers

Content-Type: application/pdf

Content-Type: application/pdf

Common MIME types - HTTP | MDN (mozilla.org)

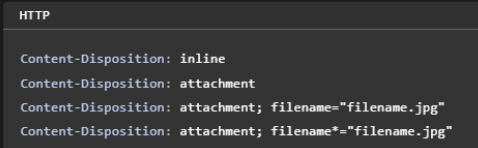

Content-Disposition: inline

Content-Disposition: attachment; filename=“filename.pdf”

Content-Disposition: inline
Content-Disposition: attachment; filename="filename.pdf"

Content-Disposition - HTTP | MDN (mozilla.org)

View the Flow

View the flow

Key component

@{triggerOutputs()[‘queries’]}

@{triggerOutputs()['queries']}

Overview

Sequence

We still have a problem

What do we need?

Reverse Proxy

Solution requirements

• Authenticate by Azure B2C

• Reverse Proxy function

Where can I find this

Out of the box Authentication

FLOW_URL=https://prod-21.uksouth.logic.azure.com/workflows/your-logic-app-url
FLOW_KEY=your-flow-key-value

Lets deploy it

1. Access the Repo
2. Press Deploy
3. Follow the on screen instructions

Lets deploy it

1. Access the Repo
2. Press Deploy
3. Follow the on screen instructions
4. Add Environment variables

FLOW_URL=https://prod-15.uksouth.logic.azure.com/workflows/7a854d30969e4158bac2b17ac15d1ad7/triggers/manual/paths/invoke?api-version=2016-06-01&sp=%2Ftriggers%2Fmanual%2Frun&sv=1.0&sig=FrLhWsuldO9AiPgF4ztcjuvjsSrBrJtlD5Mf17jjU_I

FLOW_KEY=ABC123

Lets deploy it

1. Access the Repo
2. Press Deploy
3. Follow the on screen instructions
4. Add Environment variables
5. Setup Azure B2C

Lets see that working

Demo 5

Live Demo 5

View the form Power Pages Portal

Try it out

Username:

demo@tweed.technology

Password:

TechTweedie1!

View the flow

View the flow

Key component

Inbound Header

X-MS-CLIENT-PRINCIPAL-ID

  "X-MS-CLIENT-PRINCIPAL-ID": "1ebcd192-5366-48eb-9028-04610ae1704d"

Key component

Fetch XML

<fetch>
  <entity name="techtwed_settlement">
    <attribute name="techtwed_name" />
    <attribute name="techtwed_settlementid" />
    <filter>
      <condition attribute="techtwed_name" operator="eq" value="SET-1001-T8B5" />
    </filter>
    <link-entity name="contact" from="contactid" to="techtwed_customer" alias="contact">
      <link-entity name="adx_externalidentity" from="adx_contactid" to="contactid" alias="externalid">
        <filter>
          <condition attribute="adx_username" operator="eq" value="1ebcd192-5366-48eb-9028-04610ae1704d" />
        </filter>
      </link-entity>
    </link-entity>
  </entity>
</fetch>

High Level Solution

Sequence Diagram

Where have I used this Pattern

• Document Generation
• WiFi Network Login
• Register Interest
• Login to a legacy systems
• Door code generation

Questions

Keep in touch

Feedback

Presentation

Github Repo
